TFT

TFT stands for Thin-Film Transistor, a type of active-matrix technology used to drive the pixels of a display screen. It's not a standalone screen type but is often used in conjunction with LCD and other display panels, commonly known as TFT-LCD.

Search

Product

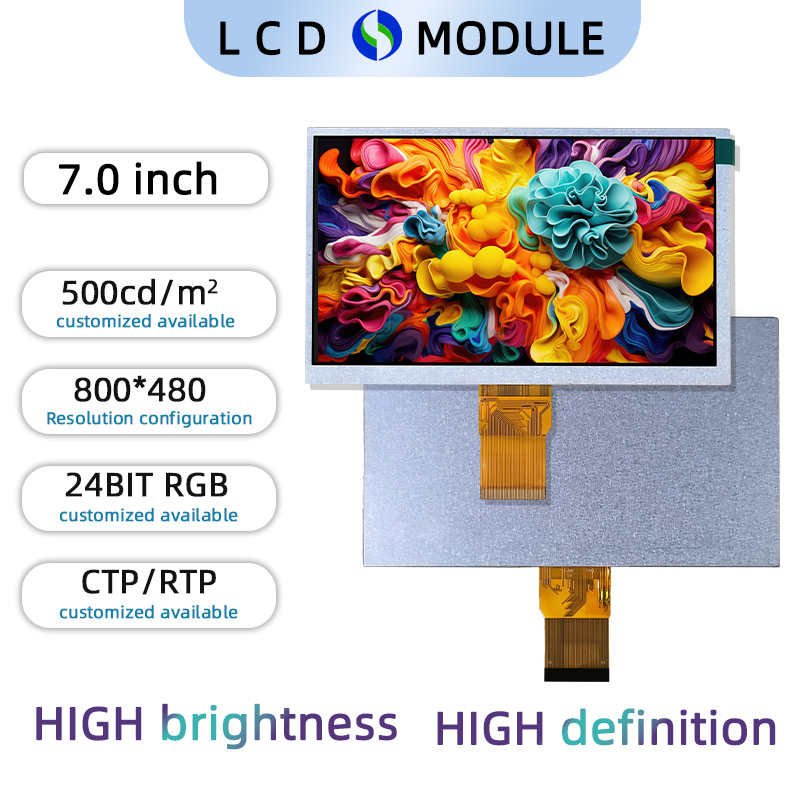

lcd module 7.0 inch

7-inch high-definition TFT LCD display, 800×480 resolution, 24-bit RGB interface, 500 nits brightness

Learn More

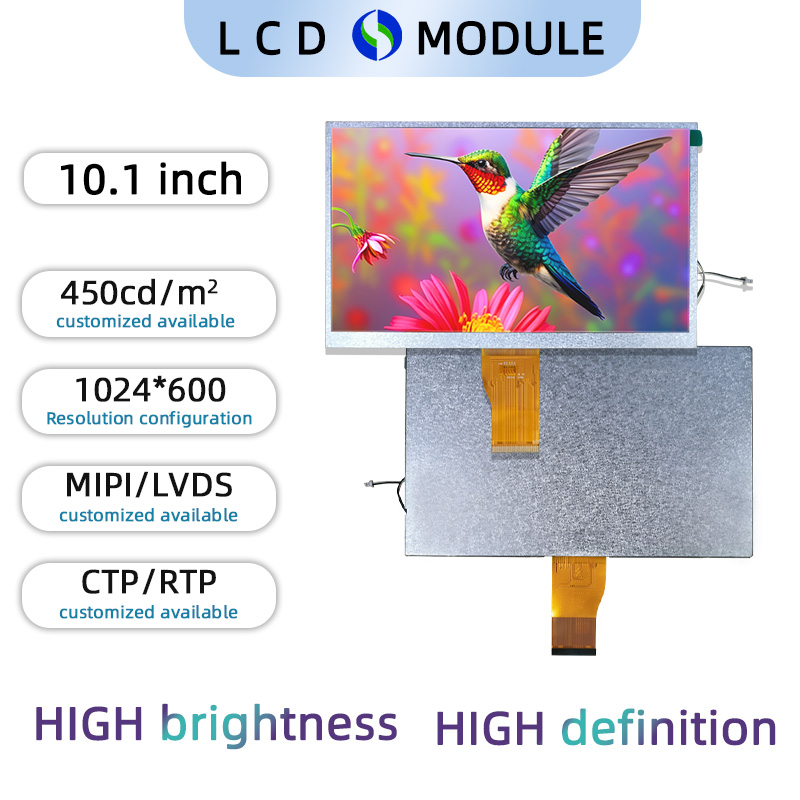

lcd module 10.1 inch

10.1-inch LCD display, 450 nits brightness, 1024×600 resolution, MIPI interface

Learn More

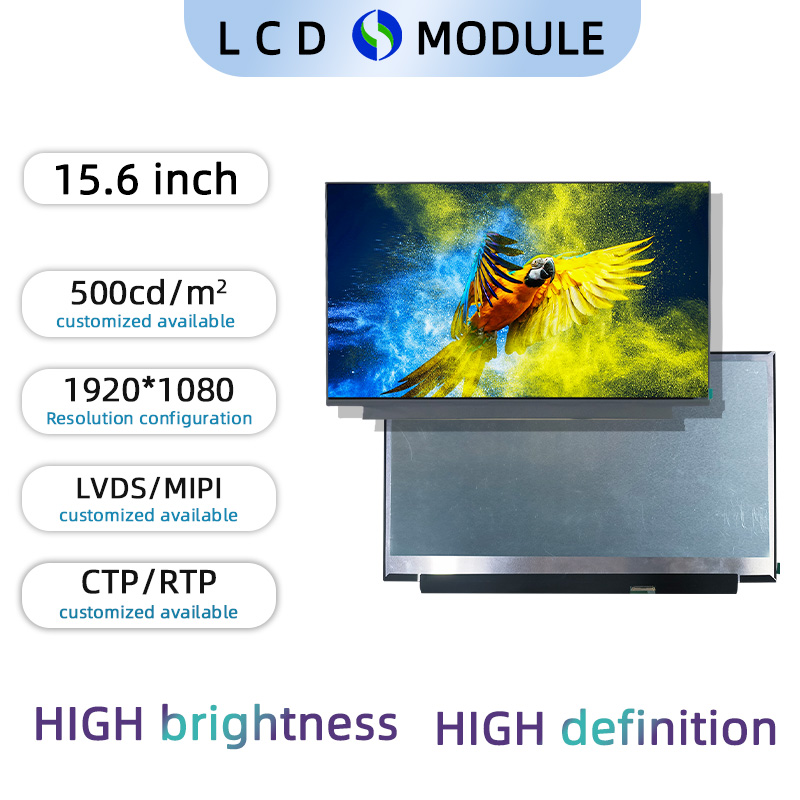

lcd module 15.6 inch

15.6-inch LCD display with 1920×1080 high-definition resolution, 500 nits brightness, LVDS interface

Learn More

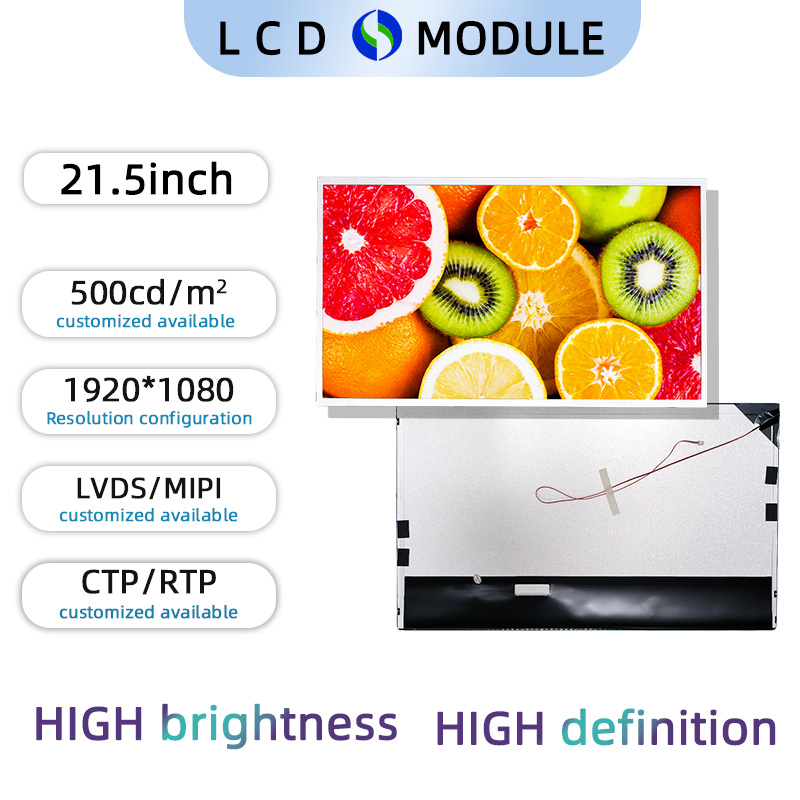

lcd module 21.5 inch

21.5-inch LCD display, 1920×1080 high-definition resolution, 500 nits brightness, LVDS interface

Learn More

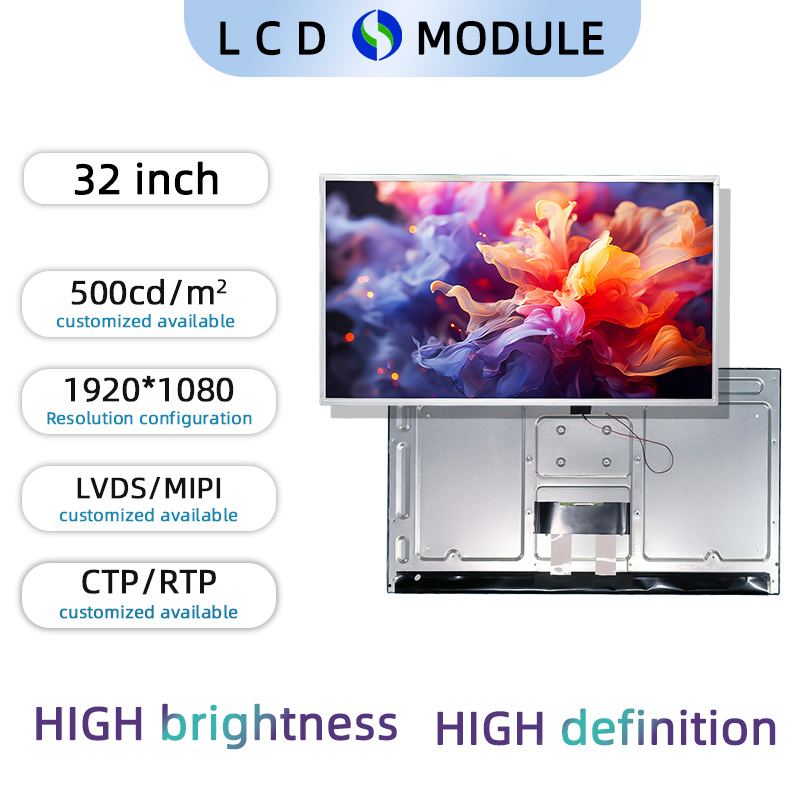

lcd module 32 inch

32-inch LCD display, 1920×1080 high-definition resolution, 500 nits brightness, LVDS interface

Learn More
FAQ

Frequently Asked Questions

FAQ1

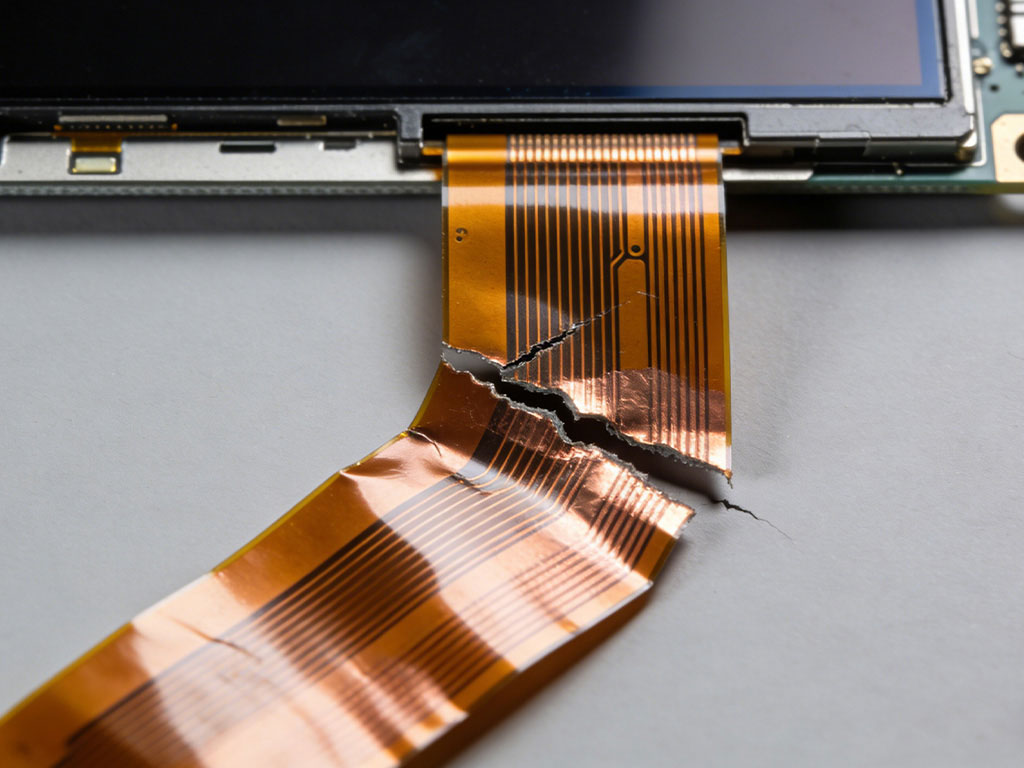

FPC breakage in LCD displays may be caused by several factors, including: the bending radius being too small, less than the design allowable value (generally ≥3 times the FPC thickness); or the tensile force during assembly exceeding the tensile strength of the FPC (approximately 50-100 N/cm² for standard FPC).
The main reasons are: A. Unstable driving voltage, VCOM voltage drift, and a mismatch between the TFT common electrode voltage (VCOM) and the pixel voltage, leading to unstable electric field at mid-gray levels.
A. Signal Transmission Link Issues Poor contact, oxidation of the connector, or poor/damaged cable quality in signal cables (such as HDMI, DisplayPort, VGA) can cause digital signal transmission errors or interruptions. Additionally, excessively long signal transmission distances or strong electromagnetic interference can also cause signal distortion. B. Graphics Processing Unit or Driver Issues Outdated, incompatible, or incorrectly installed graphics card (GPU) drivers. The graphics card itself may malfunction due to overheating, overloading, or hardware aging, failing to properly render and output image signals. C. Display Screen Malfunctions Physical damage to the display's internal timing controller, driver IC, or the LCD panel itself. Poor contact or damage to the ribbon cable (the flexible circuit connecting the driver board and the LCD panel) is also a common hardware cause of screen flickering.
A. Improper Refresh Rate Settings or Signal Desynchronization An excessively low screen refresh rate setting (e.g., below 60Hz) in the operating system or graphics card driver, or a refresh rate not supported by the display, can lead to poor image stability. A mismatch between the output resolution or timing of the input signal source (such as a computer) and the display's optimal parameters can also cause synchronization problems. B. Unstable Power Supply A malfunctioning power adapter, power board, or internal DC-DC converter circuit supplying power to the display can cause ripple or fluctuations in output current and voltage, directly affecting the stable operation of the backlight driver and motherboard chips, resulting in flickering. C. Backlight Dimming Mechanism Issues Especially for displays using PWM (Pulse Width Modulation) dimming, at low brightness settings, if the PWM frequency is low, the human eye can easily perceive rapid changes in backlight brightness, resulting in flickering. Some displays may also exhibit jitter under AC frequency interference.
